ABS High Efficiency Evaporative Cooling Tower For 200-300 Square Meter Space

Наименование марки:	Wotech
Номер модели:	WBC-19.8C-B-S
МОК:	1
цена:	Подлежит обсуждению
Подробная информация об упаковке:	Polywood Pallet
Условия оплаты:	T/T，L/C AT SIGHT

Подробная информация

Описание продукта

Подробная информация

Place of Origin:

China

Послепродажная служба предоставлена:

Бесплатные запасные части

Гарантия:

1 год

Эксплуатационный язык:

Английский

Приложение:

Гараж, коммерческий

логотип/шаблон:

Шелковая печать

Тип мощности:

Атмосфера

Источник питания:

Электрический

Охлаждение/отопление:

Только охлаждение

Название продукта:

Охлаждающая башня

Источник питания:

380-415V/3PH/50 Гц

Хладагент:

R-410A

Бренд:

Wotech

Охлаждающая способность:

18,5 кВт

Цвет:

Белый

Функция:

Охлаждающий ветер

<63db (а)

Supply Ability:

800 SETS/DAY

Выделить:

ABS evaporative cooling tower

high efficiency cooling system

cooling tower for 200-300 sqm

Описание продукта

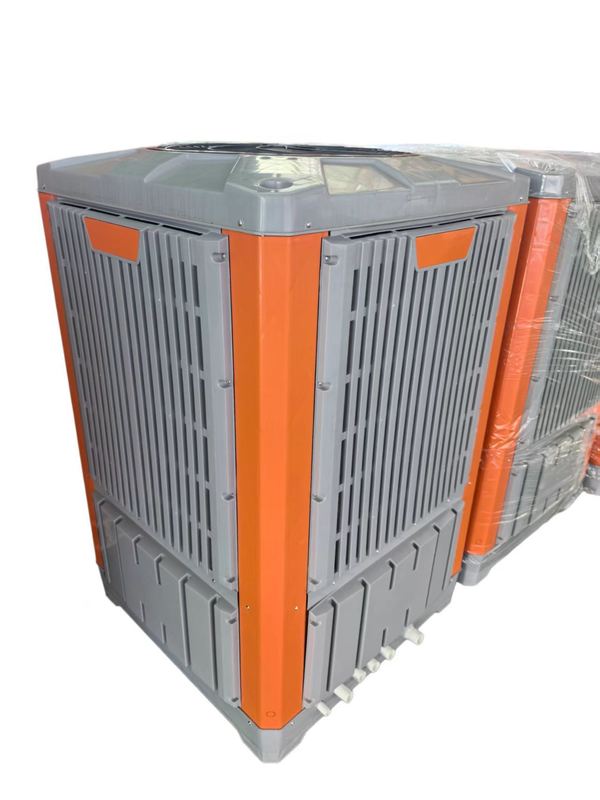

ABS High Efficiency Evaporative Cooling Tower For 200-300 Square Meter Space

WVotech's high-etticiency evaporative cooling towerintegrates cooling, dehumidification, and air delivery. lt usesa once-through heat exchange mode, where hot and humidair is quickly discharged outside through the internalstructure, and fresh outdoor air is continuously supplied forsecondary cooling. This system is especially effective forlarge indoor spaces with high ceilings. Typically, one unitcovers 200-300 square meters.

Wide Range of Applications —Ideal for Cooling Large Spaces

Product Description

Specification

Model No.		WBC-19.8C-B-S
Rated cooling capacity	kW	32
Rated input power	kW	6.3
Rated input current	A	10.5
Maximum input current	A	14.5
Maximum input power	kW	7.5
Power supply	V~Hz	380V~50Hz
Operate Temperature	℃	10℃~45℃
Inlet and outlet pipe diameter	inch	G1.5"
Noise	dB(A)	≤63dB(A)
Air supply distance	m	13
Maximum air volume	m³	4500
Water side pressure Drop	Kpa	50
Product Size	mm	10006502080
Package Size	mm	10206702200
Net Weight	kg	190

The data above subject to change without prior notice.

Application Scenarios

Recommended Applications

1.Places with high occupancy or short-term concentration needing rapid cooling: auditoriums,

meeting rooms, classrooms, schools, canteens, gyms, exhibition halls, manufacturing plants, toy

factories, and marketplaces.

2.Heat-intensive industrial settings: machine rooms, electrical control rooms, mechanical workshops,

injection molding, printing, food processing, glass, textiles, electronics, and home appliance

production.

3.Commercial spaces needing temperature control: supermarkets, internet cafés, entertainment

venues, storage rooms.

4.Agricultural R&D centers and greenhouses requiring controlled temperature and humidity.

5.Applications requiring precise temperature control: food processing, dairy production, water

purification, pharmaceuticals, greenhouses, mushrooms, tea, chemicals, and lab equipment.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
